Remove entire filter tray as shown in picture, then push out top funnel by pushing its end.
* Be careful of water spills and top funnel and filter fallling apart.
Maintenance - Pure Crystal Water Fountain
How to maintain your Pure Crystal
How to maintain your Pure Crystal > Pure Crystal PRO for Dog petit size and All Cats
Pure Crystal PRO for Dog petit size and All Cats
* Pictures used show Pure Crystal All Cats model
How to maintain
![]() |
Remove top funnel |
![Remove top funnel](img/maintenance/03_img01.jpg)
![](img/maintenance/arrow.gif)
![]() |
Remove filter media |
![Remove filter media](img/maintenance/03_img02.jpg)
![](img/maintenance/arrow.gif)
![]() |
Remove filter tray |
![Remove filter tray](img/maintenance/03_img03.jpg)
![](img/maintenance/arrow.gif)
If top funnel is difficult to remove
![If top funnel is difficult to remove](img/maintenance/03_img06.jpg)
![]() |
Remove cord with pump from base tank |
![Remove cord with pump from base tank](img/maintenance/03_img04.jpg)
![](img/maintenance/arrow.gif)
* Pure Crystal PRO doesn't include the protection cord cover.
* Pure Crystal PRO doesn't include the protection cord cover.
![](img/maintenance/arrow.gif)
![]() |
Rinse and clean |
Rinse top funnel, filter tray, base tank and cord cover with water. If you cannot clean off thoroughly, cleanse with mild detergent using sponge.
* Do not use cleansers. Rinse thoroughly.
How to maintain filter
![How to maintain filter](img/maintenance/03_img05.jpg)
Rinse filter surface with running water. Make sure not to use detergent.
* Replace filter media approximately once a month or when the filter is contaminated with left over food and hair.
* Replace filter media approximately once a month or when the filter is contaminated with left over food and hair.
How to maintain pump
![]() |
Remove pump from base tank |
![Remove pump from base tank](img/maintenance/03_img07.jpg)
![](img/maintenance/arrow.gif)
![]() |
Remove outlet pipe |
![Remove outlet pipe](img/maintenance/03_img08.jpg)
![](img/maintenance/arrow.gif)
* Rinse outlet pipe and brush thoroughly with water.
* Rinse outlet pipe and brush thoroughly with water.
![](img/maintenance/arrow.gif)
![]() |
Remove pump cover |
![Remove pump cover](img/maintenance/03_img09.jpg)
![](img/maintenance/arrow.gif)
![]() |
Remove impeller cover |
![Remove impeller cover](img/maintenance/03_img10.jpg)
![](img/maintenance/arrow.gif)
How to remove pump cover
![How to remove pump cover](img/maintenance/03_img15.jpg)
Remove pump cover by holding pump as illustration and add pressure in the direction of arrows.
Pump structure
![Pump structure](img/maintenance/03_img16.jpg)
![]() |
Remove impeller |
![Remove impeller](img/maintenance/03_img11.jpg)
![](img/maintenance/arrow.gif)
Rinse top funnel, filter tray, base tan, cord cover with water. If cannot clean off thoroughly, cleanse with mild detergent.
* Do not use cleansers. Rinse thoroughly.
* Do not use cleansers. Rinse thoroughly.
Rinse top funnel, filter tray, base tan, cord cover with water. If cannot clean off thoroughly, cleanse with mild detergent.
* Do not use cleansers. Rinse thoroughly.
* Do not use cleansers. Rinse thoroughly.
![](img/maintenance/arrow.gif)
![]() |

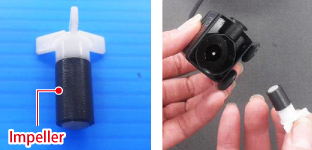

Rinse impeller |
![Rinse impeller](img/maintenance/03_img12.jpg)
Rinse impeller and clean inside of pump with cotton swab.
Impeller not clean |
Residue impeller caught |
|
![]() |
![]() |
|
*Impeller will not function properly if impeller is contaminated with hair and left over food. |
If impeller cannot revolve, it will become locked and stop the water flow. Be sure to maintain the impeller once a month.
* The impeller magnet will become weak after long usage which will diminsh the pump power.
We recommend the pump to be replaced once a year.
* Kindly contact your nearest store for replacement pump which is sold separately.
* The impeller magnet will become weak after long usage which will diminsh the pump power.
We recommend the pump to be replaced once a year.
* Kindly contact your nearest store for replacement pump which is sold separately.
After maintenance is finished,
reverse procedure to re-set the unit.
reverse procedure to re-set the unit.
Attention | ||||
---|---|---|---|---|
If the AC adaptor or pump cord is difficult to put through the protection tube due to its curve, please straighten the tube as below illustration. | ||||
![]() |
![]() |
|||
Warm the protection tube by soaking in luke warm water (30~40℃)and straighten the tube. |
